1500W Laboratory Test Equipment Sand And Dust Test Chamber

Name: 1500W Laboratory Test Equipment Sand And Dust Test Chamber
Brand: kerang
Price: 1 USD

Quality 1500W Laboratory Test Equipment Sand And Dust Test Chamber for sale

Brand Name : kerang

Model Number : DC-1

Certification : certification

Place of Origin : CHINA

MOQ : 1SET

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 20 sets/month

Delivery Time : 50days

Packaging Details : plywood

Material : Q235

weight : 200kg

color : white

size : 1200mm*1000mm

purpose : Dust test

Contact Now

Sand And Dust Test Chamber

Product information:

Sand and dust test chamber is designed and manufactured in accordance with the standard requirement of IEC60529. It is applicable to do the dust proof test of all kinds of electric and electronic products used on the environmental condition of sand dust.

Technical parameters:

Item	parameter
Input voltage	AC 220V±10 % 50Hz&120V 60HZ
Metal mesh diameter	Ф50µm
screen stencil diameter	75µm
Dust used in the test	Dry talcum powder which can go through olfactory foramina
Dust concentration	Dust capacity of the chamber is 2Kg /m³
Airflow velocity	The maximum is no more than 2m / S
Testing time	0.01s~99 hours 99mins,preset arbitrarily
Speed of evacuation of vacuum pump	≤1litre/1s Adjustable arbitrarily.
Power	≤1500W
Environmental condition	Temperature:0~40℃ Relative humidity:≤85%RH No fierce shaking, impacting, vibrating. No dust and corrosive air
Outer box size	LWH=1000mm×1100mm×1650mm
Internal box size	LWH=800mm×800mm×800mm

1500W Laboratory Test Equipment Sand And Dust Test Chamber

Product Tags:

1500W Laboratory Test Equipment

2m/S Laboratory Test Equipment

Q235 Sand And Dust Test Chamber

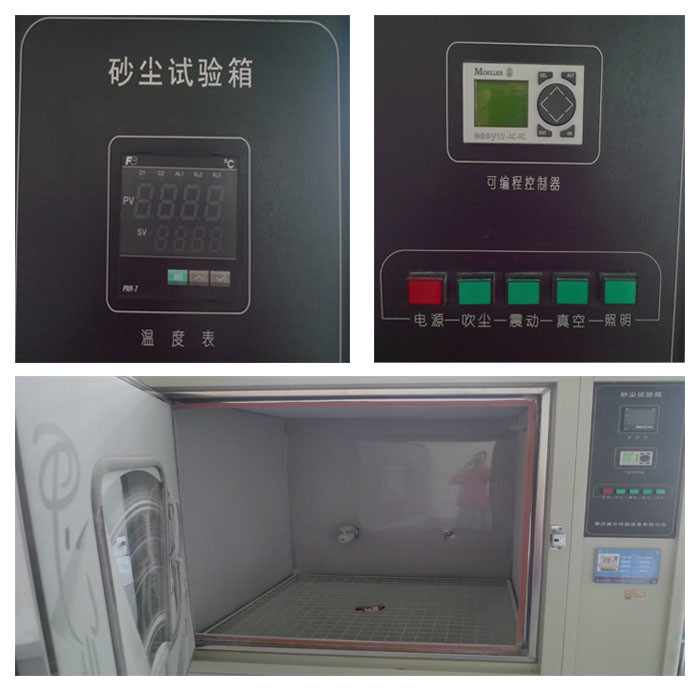

1500W Laboratory Test Equipment Sand And Dust Test Chamber Images
